Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: AV
  • Model Number: AC201608
  • Type: Piezoelectric Ceramics
  • Material: Piezo Ceramic
  • Uage: Beauty, Wash, Medical
  • Szie: Can according to your specification
  • Sample: Available
  • Product name: Piezo Electronic Ceramic
  • Application: Ultrasonic Application
  • Diameter: 3mm-80mm
  • Feature: Long Working Life
  • Raw material: PZT Piezoelectric Material

Packaging & Delivery

Packaging Details will be packed in wooden box, carton, plastic box, standard export package or 100% as per your requirements.
Delivery Time 30 days

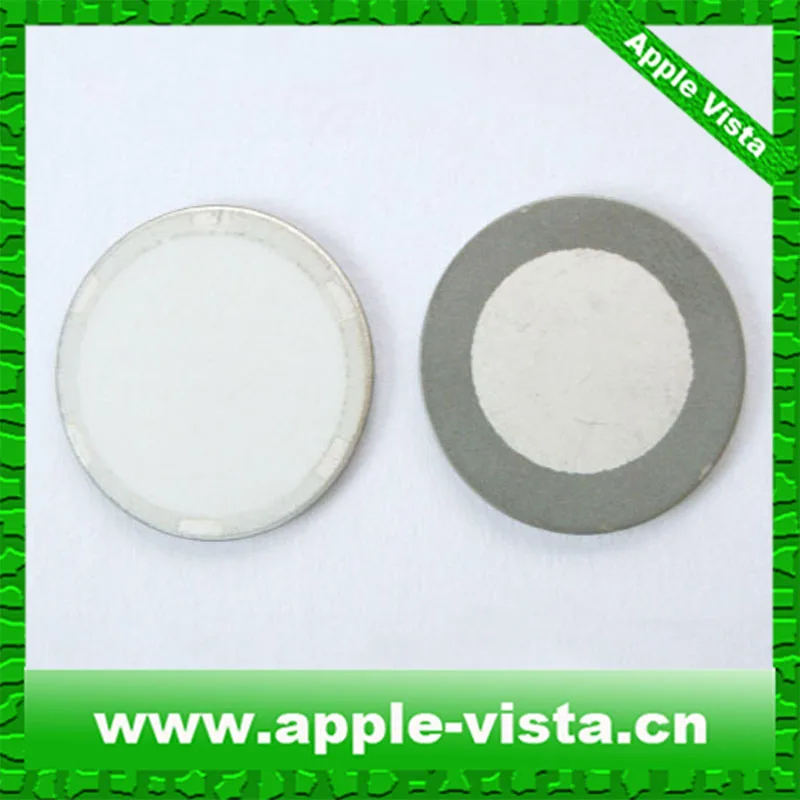

 1.7MHZ Ultrasonic Piezo Ceramic Transducer Disc for Atomizer





Description







Piezoceramic components, such as plates, disks or rings, convert mechanical signals, such as force, pressure, strain or acceleration, into electrical voltage, or, vice versa, an electrical voltage into mechanical motion or oscillations. The typical resonant frequencies are between 200 kHz and 10 MHz. The piezo elements are frequently used for generating ultrasonic oscillations, for example, in sensors or for high-power ultrasonic applications.



The shapes and dimensions of the piezo components can be selected within the limits determined by the tools, although the dimensions depend on each other. The minimum dimensions are determined by physical and technological limits. The thickness or wall thickness, for example, is limited by the mechanical strength of the ceramic during machining. In the polarization direction, the dimension is at most 30 mm.

piezo ceramics into the customer’s product. This includes both the electrical contacting of the elements according to customer requirements and the mounting of components provided by the customer, and the gluing or the casting of the piezo ceramics. Piezo elements and components can also be delivered in large quantities at very short







Different Shape





1. Disks, Rods and Cylinders











OD:Outer diameter,  TH:Thickness, P:Polarization direction

Outer diameter OD: 2 to 80 mm

Thickness TH: 0.15 to 30 mm

Electrodes: Silver (thick layer) or PVD thin layer (different materials: e. g. CuNi, Au, etc.)







2. Disks with Special Electrodes (Wrap-Around Contacts)









OD: Outer diameter, TH: Thickness

Wrap-around electrodes allow you to establish electrical contacting at a favorable position within the mechanical assembly.







3. Plates and Blocks





  L: Length, W:  Width, TH: Thickness, P: Polarization direction

Length L:1 to 80 mm

Width W: 1 to 60 mm

Thickness TH:0.1 to 30 mm

Electrodes: Silver (thick film) or thin film (CuNi or Au)





4. Rings







  OD:Outer diameter, ID:Inner diameter, TH:Thickness, P:Polarization direction

Outer diameter OD: 2 to 80 mm

Inner diameter ID: 0.8 to 74 mm

Thickness TH: 0.15 to 30 mm

Electrodes: Silver (thick film) or PVD thin film (CuNi, Au, etc.)





Applications





1)  Surface Acoustic Wave Touch Screen

2)  Ultrasonic Welding Machine

3)  Ultrasonic Cleaner

4)  Ultrasonic Atomizing

5)  Ultrasonic Beauty Vibrator

6)  Ultrasonic Flow Meter

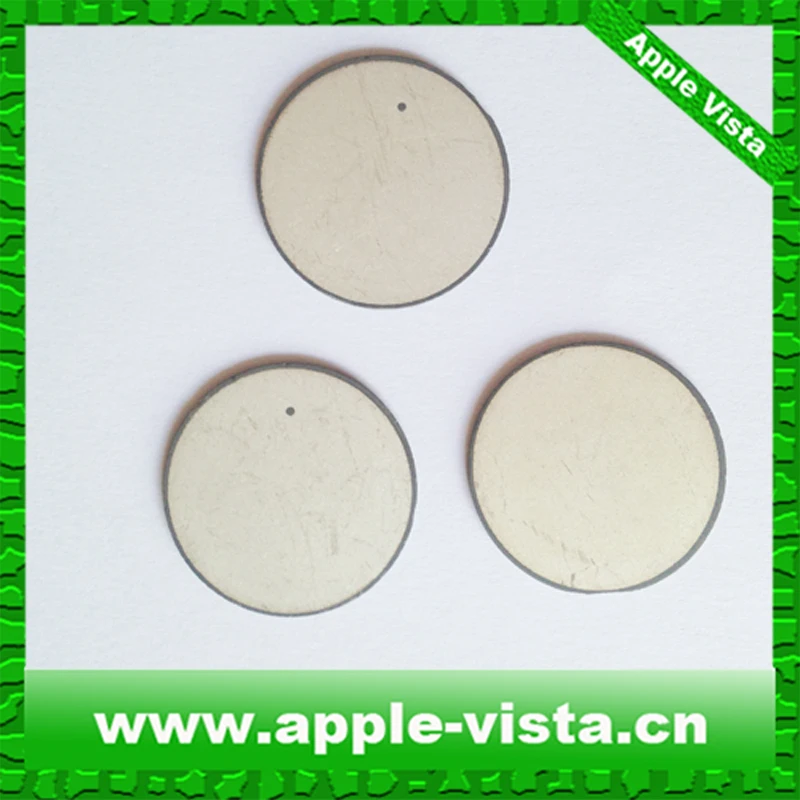

customized piezo dis





the size as 16mm, 20mm, 25mm,28mm, 38mm
the high frequency: 1MHz, 1.7MHz, 2MHz, 2.4MHz, 3MHz...
the low frequency: 103KHz, 108KHz, 110KHz, 115KHz, 132KHz
