Small Square Piezo Element for Piezo Ultrasonic Transducer

FOB Reference Price:Get Latest Price
US $0.5-2 / Piece | 1000 Piece/Pieces (Min. Order)
Supply Ability:
1000000 Piece/Pieces per Month
Port:
Shenzhen/Guangzhou/Hong Kong
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
AV
Model Number:
AC-201608
Type:
Piezoelectric Ceramics
Material:
Piezoelectric ceramic, piezo ceramic, PZT4, PZT5,PZT8
Size:
customized
Frequency:
customized
Shape:
ring
application:
ultrasonic equipments
Unit price:
Depend on quantity
business type:
manufacture
Payment:
TT,western union
shipment:
By air/express/sea
Product name:
Piezo Ceramic Element
Packaging & Delivery
Packaging Details
Export carton
Delivery Time
15-30 workdays

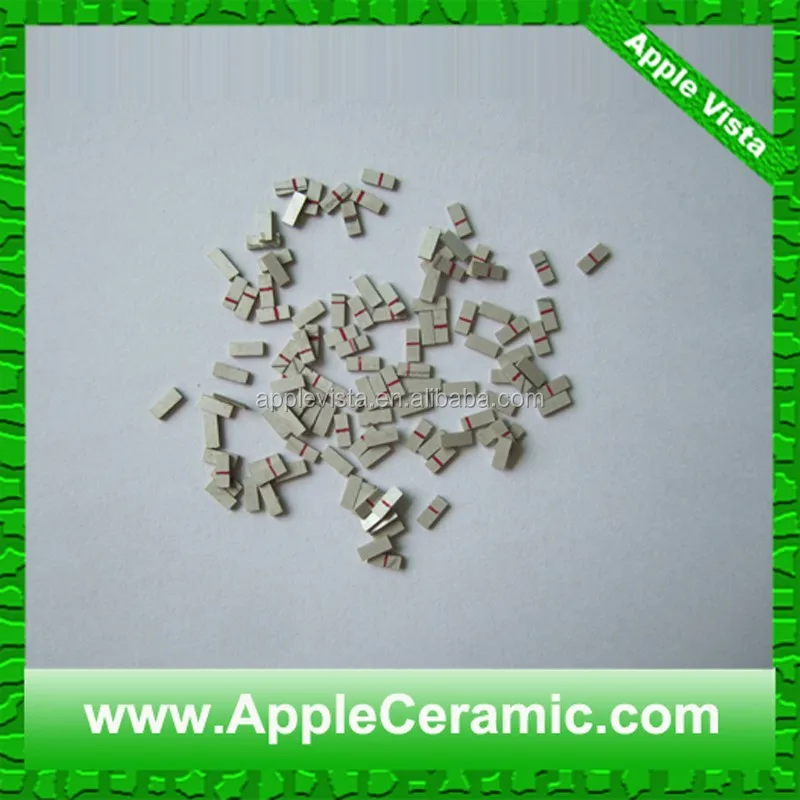

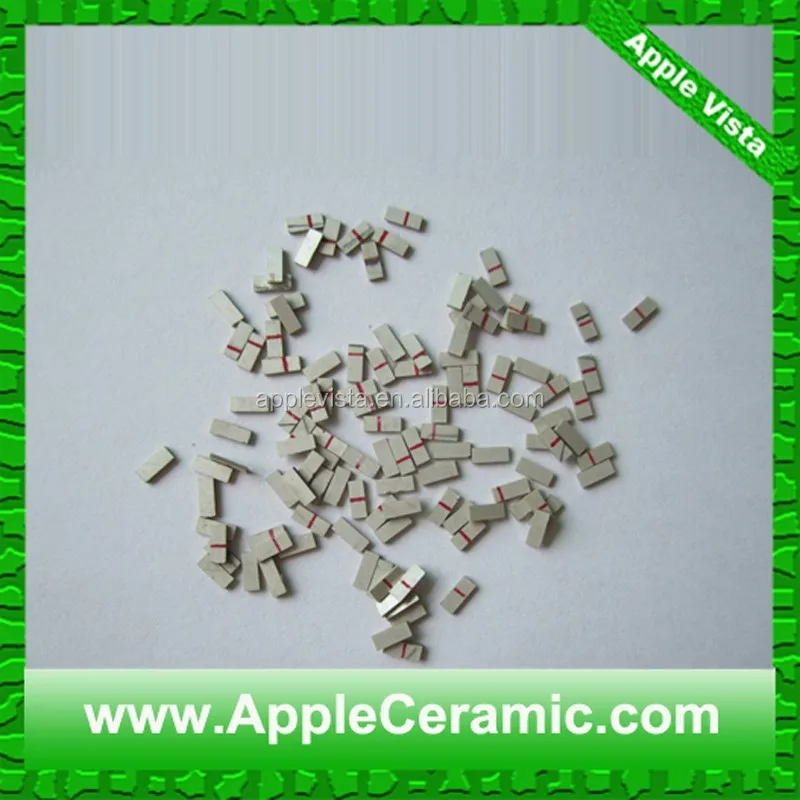

Small Square Piezo Element for Piezo Ultrasonic Transducer



Specification:

Ultrasonic Piezoelectric Ceramic Transducers for ultrasonic machine

Low MOQ as 1000pcs

Customized sizes

Customized frequency

For ultrasonic application



Piezoelectric ceramics:piezoelectric ceramics is a kind of functional ceramic materials capable of converting mechanical energy and electric energy to convert , belongs to the field of inorganic non-metal materials. The use of piezoelectric ceramic materials on the mechanical stresses caused by positive and negative center, internal relative displacement polarization occurs, resulting in material surface appear at both ends of bound charges of opposite sign that the piezoelectric effect and production, with sensitive characteristics.

Applications: Ultrasonic transducer, acoustic transducer, acoustic transducer, ceramic filters, ceramic, ceramic discriminator transformer, high voltage generator, infrared detector, surface acoustic wave device, electro-optical device, ignition and detonation device and piezoelectric gyro.



Normal size table



SpecDimensionThickness frequencyCapacitanceElectromechanical coupling coefficientPiezoelectric voltage coefficientCourier temperature
(MHz)(pf)KpKtd33(℃)
AV-5AF08010Φ8 × 12.0MHz±5%530±10%0.650.43350×10^(-12) C/N350
AV-5HF08010Φ8 × 12.0MHz±5%850±10%0.640.44400×10^(-12) C/N330
AV-5AF08020Φ8 × 21.0 MHz±5%265±10%0.650.43350×10^(-12) C/N350
AV-5HF08020Φ8 × 21.0 MHz±5%430±10%0.640.44400×10^(-12) C/N330
AV-5AF10010Φ10 × 12.0 MHz±5%840±10%0.650.44350×10^(-12) C/N350
AV-5HF10010Φ10 × 12.0 MHz±5%1350±10%0.640.43400×10^(-12) C/N330
AV-5AF10020Φ10 × 21.0 MHz±5%420±10%0.650.44350×10^(-12) C/N350
AV-5HF10020Φ10 × 21.0 MHz±5%680±10%0.650.45400×10^(-12) C/N330
AV-5AF15010Φ15 ×12.0 MHz±5%1970±10%0.650.43350×10^(-12) C/N350
AV-5HF15010Φ15 × 12.0 MHz±5%3200±10%0.650.45400×10^(-12) C/N330
AV-5AF15020Φ15 × 21.0 MHz±5%980±10%0.660.43350×10^(-12) C/N350
AV-5HF15020Φ15 × 21.0 MHz±5%1600±10%0.650.45400×10^(-12) C/N330
AV-5AF16010Φ16×12.0 MHz±5%2200±10%0.650.45350×10^(-12) C/N350
AV-5HF16010Φ16×12.0 MHz±5%3600±10%0.650.45400×10^(-12) C/N330
AV-5HF16020Φ16 × 21.0 MHz±5%1850±10%0.650.45400×10^(-12) C/N330
AV-5AF16020Φ16 × 21.0 MHz±5%1100±10%0.650.45350×10^(-12) C/N350
AV-5AF20010Φ20×12.0 MHz±5%3560±10%0.660.43350×10^(-12) C/N350
AV-5HF20010Φ20×12.0 MHz±5%5800±10%0.650.45400×10^(-12) C/N330
AV-5AF20020Φ20×21.0 MHz±5%1780±10%0.650.43350×10^(-12) C/N350
AV-5HF20020Φ20×21.0 MHz±5%2900±10%0.650.45400×10^(-12) C/N330
AV-5AF25010Φ25 × 12.0 MHz±5%4600±10%0.660.43350×10^(-12) C/N350
AV-5HF25010Φ25 × 12.0 MHz±5%7500±10%0.650.45400×10^(-12) C/N330
AV-5AF25020Φ25 × 21.0 MHz±5%2300±10%0.650.43350×10^(-12) C/N350
AV-5HF25020Φ25 × 21.0 MHz±5%3700±10%0.650.45400×10^(-12) C/N330
AV-5AF40020Φ40 × 21.0 MHz±5%7200±10%0.650.45350×10^(-12) C/N350





We can customized piezo disc of
the size as 16mm, 20mm, 25mm,28mm, 38mm
the high frequency: 1MHz, 1.7MHz, 2MHz, 2.4MHz, 3MHz...
the low frequency: 103KHz, 108KHz, 110KHz, 115KHz, 132KHz...
